1.8 Inch 360×360 SPI 30°C to 85°C TFT LCD Display Wide Temperature LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET018WT01-XH

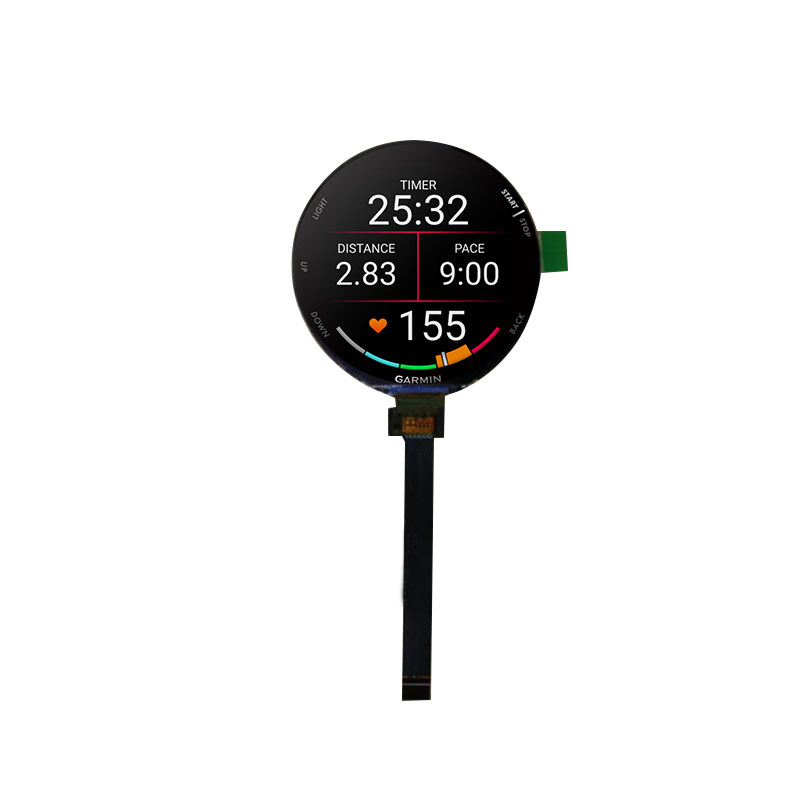

ET018WT01-XH is a 1.8 inch diagonal TFT-LCD display screen product. ET018WT01-XH supports a display resolution of 360×360 with a square aspect ratio, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 45.68(W) × 45.68(H) mm and an outline dimension of 47.99(W) × 49.86(H) mm. The module adopts a transmissive display mode and supports an SPI interface for communication. ET018WT01-XH provides a typical display brightness of 400 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for reliable performance in wide temperature conditions, it supports an operating temperature range of -20~70°C and a storage temperature range of -30~80°C. This display module does not include a touch panel.

Technical Data:

Part #：

ET018WT01-XH

Brand：

YOURITECH

Size：

1.8 Inch"

Resolution：

360x360

Interface：

SPI

Technology：

Transmissive

Brightness：

400(Typ.)

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
