1.28 Inch Circular Display SPI 240x240 IPS 550nits High Brightness Round LCD Display For Wearable

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET013CR10-T

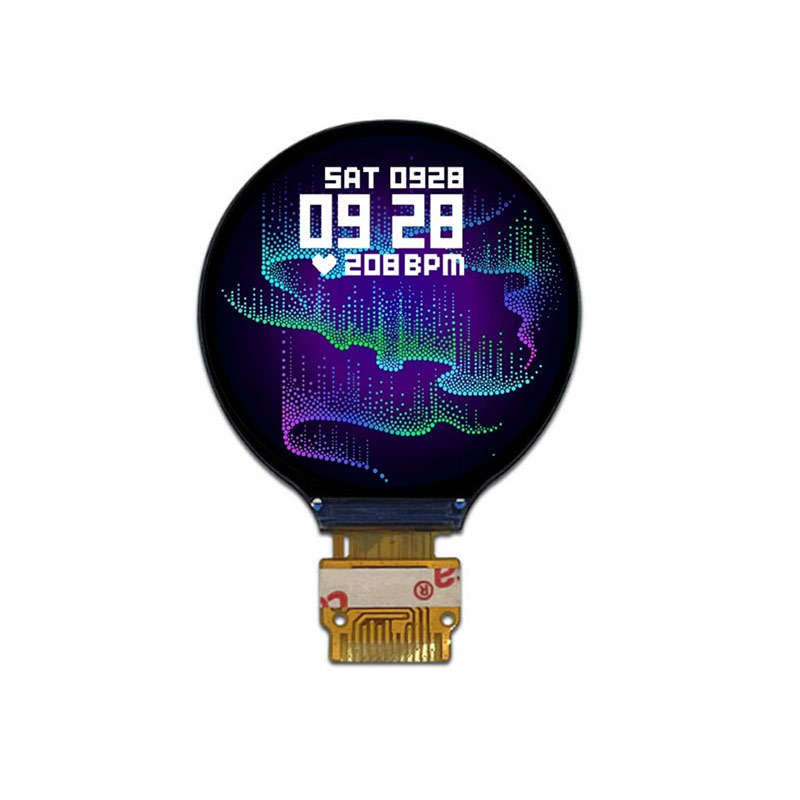

ET013CR10-T is a 1.28 inch diagonal circular TFT-LCD display product, featuring IPS technology and transmissive display mode. ET013CR10-T supports 240×240 resolution with a 1:1 aspect ratio, delivering clear and vivid image performance for wearable applications. It adopts an SPI interface for efficient data transmission. The display features an active area of 32.4(W) × 32.4(H) mm and an outline dimension of 35.6(W) × 38.1(H) mm. ET013CR10-T can provide 550 cd/m² typical brightness, wide viewing angles of 80/80/80/80 (L/R/U/D), ensuring excellent visibility from multiple directions. It operates reliably under temperatures ranging from -20°C to 70°C, with storage temperatures from -30°C to 80°C. This model is designed without touch functionality, making it an ideal round LCD display solution for wearable devices.

Technical Data:

Part #：

ET013CR10-T

Brand：

YOURITECH

Size：

1.28 inch"

Resolution：

240x240

Interface：

SPI

Technology：

Transmissive

Brightness：

550(Typ.)

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
