4 Inch OLCD Display MIPI 960×160 AMOLED Display With Capacitive Touch

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET-G1323TC101FF-002

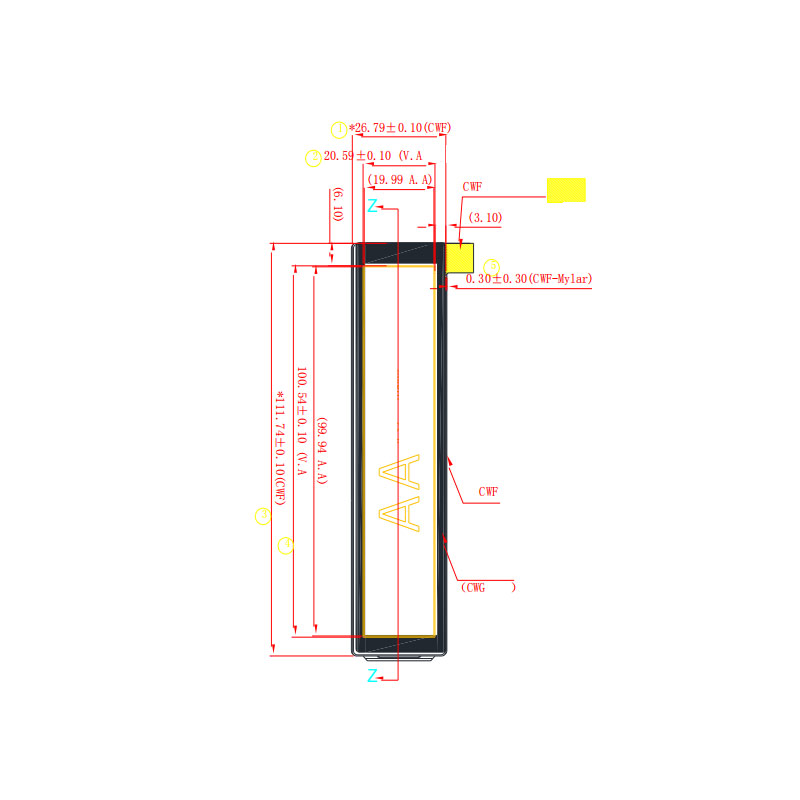

ET-G1323TC101FF-002 is a 4 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET-G1323TC101FF-002 supports a resolution of 960×160 with an approximate 6:1 aspect ratio (W:H) and offers wide viewing angles of 85/85/85/85 (L/R/U/D). It features an active area of 19.99(W) × 99.94(H) mm and an outline dimension of 27.39(W) × 111.74(H) mm, and adopts a MIPI interface for signal transmission. The display provides a brightness of 350 nits and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). With integrated capacitive touch functionality, ET-G1323TC101FF-002 is suitable for interactive applications requiring compact, high-quality display performance.

Technical Data:

Part #：

ET-G1323TC101FF-002

Brand：

YOURITECH

Size：

4 Inch"

Resolution：

960×160

Interface：

MIPI

Technology：

AM-OLED

Brightness：

350nits

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
