COM35H3P58ULC Ortustech 3.5 Inch TFT LCD Display 320×240 Parallel RGB Transflective Wide Temperature LCD Panel

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > ORTUSTECH > COM35H3P58ULC

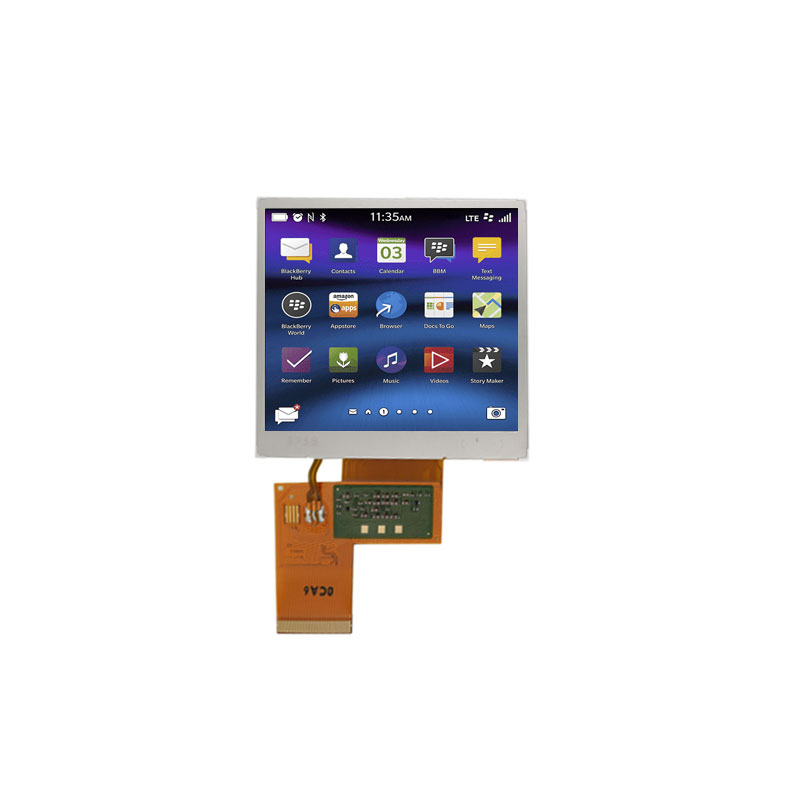

COM35H3P58ULC is a 3.5 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen.COM35H3P58ULC supports display 320×240(RGB) (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 70.32(W)×52.74(H) mm, outline size of 79.8(W)×66.5(H)×5.1(D) mm, with surface treament of Hard coating (2H), net weight of 40.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM35H3P58ULC can provides 600 cd/m² display brightness 700:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC).

Technical Data:

Part #：

COM35H3P58ULC

Brand：

ORTUSTECH

Size：

3.5 inch"

Resolution：

320×240

Interface：

Parallel RGB (1 ch,8-bit)

Technology：

Transflective

Brightness：

600 cd/m² (Typ.)

Operating Tem：

-30 ~ 85 °C

Storage Tem：

-40 ~ 95 °C
