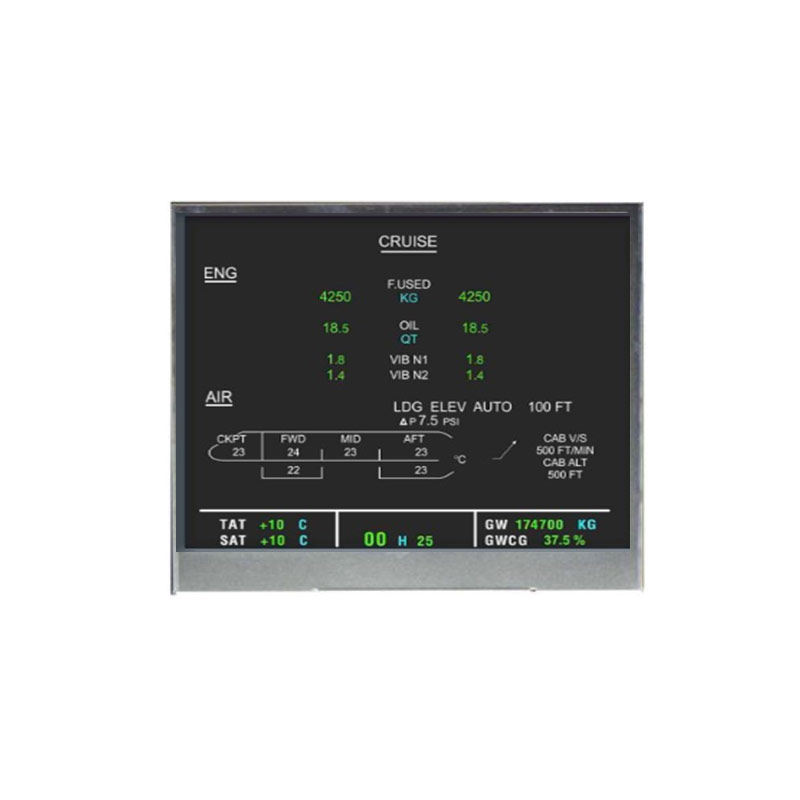

AV035LQM-N10-28P0 3.5 Inch 320×240 Parallel RGB SPI 750nits High Brightness Wide Temperature IPS LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > BOE > AV035LQM-N10-28P0
AV035LQM-N10-28P0 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 70.08(W)×52.56(H) mm, outline size of 84.4(W)×70(H)×23.1(D) mm, with surface treament of Antiglare, Reflection 6.0% (Max.), net weight of 60.0g (Typ.). As a ADS, Normally Black, Transmissive LCM product, AV035LQM-N10-28P0 can provides 750 cd/m² display brightness 100:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 70% (NTSC). This product adopted 1S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AV035LQM-N10-28P0 utilizes Parallel RGB (1 ch, 6-bit) + SPI as it's signal inputting systerm, which connected by 42 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
AV035LQM-N10-28P0
Brand：
BOE
Size：
3.5 inch"
Resolution：
320x240
Interface：
Parallel RGB+SPI
Technology：
Transmissive
Brightness：
750(Typ.)
Operating Tem：
-30~85°C
Storage Tem：
-40~95°C
