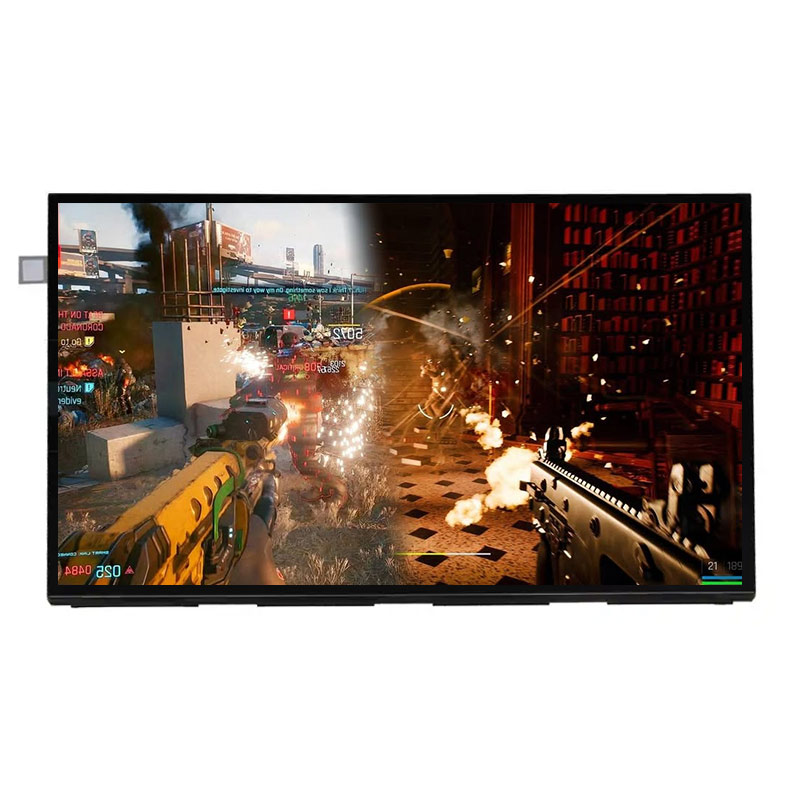

15.6 Inch 2880×1620 eDP Display ATNA56AC02 For Game Console Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > > ATNA56AC02

ATNA56AC02 is a 15.6 inch diagonal AM-OLED display screen product, it self emiting, without touch screen. ATNA56AC02 supports display 2880(RGB)×1620 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.218(W)×193.622(H) mm, outline size of 347.42(W)×202.32(H)×1.44(D) mm, with surface treament of Glare (Haze 0%), net weight of 200g (Typ.), shape stype of Slim (PCBA Bent, T≤3.0mm). ATNA56AC02 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA56AC02 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/10V (Typ.)(VDD/VBAT). It's typical vertical frame rate (Fv) is 120Hz.

Technical Data:

Part #：

ATNA56AC02

Brand：

Size：

15.6 inch"

Resolution：

2880x1620

Interface：

eDP (4 Lanes)

Technology：

AM-OLED

Brightness：

400cd/m²

Operating Tem：

-20~70°C

Storage Tem：

-40~85°C
