Infrared Night Vision Display

Infrared night vision displays are typically used in specialized applications like military, security, and certain advanced gaming or simulation systems. These displays utilize infrared technology to allow users to see in low-light or completely dark environments. Here are the key features to look for in an infrared night vision display:

1. Infrared Sensor Type

· Active IR: Uses an infrared light source (such as infrared LEDs) to illuminate the surroundings, with the sensor capturing the reflected infrared light. This type works well in complete darkness.

· Passive IR: Relies on ambient infrared radiation from natural sources, like heat from living organisms, to create an image. These displays typically have lower resolution and less range compared to active IR systems but are excellent for observing natural heat signatures.

2. Resolution

· Resolution in night vision displays is typically lower than traditional displays. This is because the technology behind infrared imaging tends to be less detailed than visible light imaging.

· Higher resolution models provide clearer images, but even with lower resolutions, many IR systems provide good performance for basic surveillance or navigation in low-light conditions.

3. Field of View (FOV)

· Wide FOV: A larger field of view allows you to cover more area in the dark, which is especially helpful for surveillance, hunting, or security operations. A wider FOV typically comes at the cost of a slightly reduced magnification range.

· Zoom: Some night vision displays allow you to zoom in or out to focus on distant objects.

4. Display Type

· LCD/LED: Most infrared night vision displays use an LCD or LED screen to show the infrared image. These screens can be designed with high contrast and a dark background for better viewing in the dark.

· OLED: Higher-end systems might use OLED displays for better contrast, deeper blacks, and better visibility in dark environments.

5. Infrared Light Source

· Some night vision systems come with built-in IR illuminators that emit infrared light to help improve visibility in total darkness. This is essential when there's no ambient infrared radiation (like starlight or heat sources).

· Adjustable IR levels: This feature allows you to control the brightness of the infrared light, so you don't wash out the image or make it too bright.

6. Range and Detection Distance

· Effective Range: The distance at which the system can detect objects using infrared light. High-quality infrared systems can detect heat signatures or objects at distances ranging from 100 feet to several miles, depending on the system.

· Detection Angle: The angle at which the infrared sensors can detect and display images. Wider angles are great for surveillance or situational awareness.

7. Contrast and Brightness Control

· The ability to adjust contrast and brightness can help improve visibility, especially in varying lighting conditions. Many systems have manual or automatic adjustments for optimal viewing.

8. Low Light and Full Dark Performance

· The ability to see in low light (ambient moonlight, streetlights) and complete darkness is crucial. Some systems excel in one area more than the other, depending on the design of the infrared sensor and light source.

· Auto-Gain Control (AGC): This helps maintain a clear image by automatically adjusting the sensitivity to light and dark conditions, preventing overexposure or too much darkness in the image.

9. Power Source and Battery Life

· Infrared systems often use rechargeable batteries or replaceable power sources. Battery life can be crucial, especially for extended operations. Long-lasting batteries (often 6-10 hours) are preferred for field use.

· Some systems may offer low-power modes to extend battery life while still providing essential infrared performance.

10. Portability

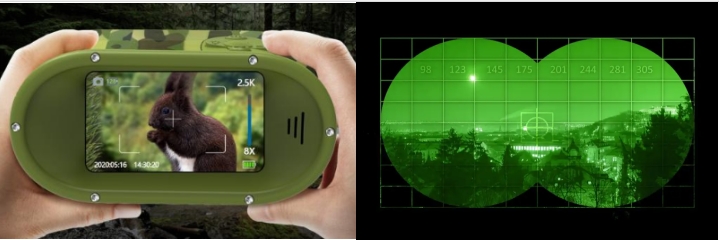

· Some infrared night vision displays are portable (e.g., handheld devices), while others are built into stationary systems for surveillance purposes. Portability is important for personal or tactical use, where you need to move and operate the system in different environments.

11. Durability and Weather Resistance

· Many infrared night vision systems are weatherproof or water-resistant, especially for military or security applications. Look for systems that can withstand harsh environmental conditions like rain, snow, and dust.

· Systems designed for field use should also be shock-resistant to prevent damage in rugged terrain.

12. Recording and Connectivity

· Some infrared systems come with built-in recording capabilities, allowing you to capture images or video for later review. This is particularly useful for security purposes.

· Wi-Fi/Bluetooth: Some models allow you to connect the display to external devices like smartphones, tablets, or computers for remote viewing or data storage.

13. Size and Weight

· The size and weight of the display can affect its portability and usability. Compact and lightweight designs are typically used for handheld devices, while larger systems may offer more advanced features at the expense of mobility.

14. Image Processing Features

· Digital Zoom: Allows for zooming into specific areas of the scene.

· Thermal Fusion: Some advanced systems combine thermal imaging with visible light or enhanced infrared, helping to highlight key features or figures in the environment.

· Edge Detection and Image Enhancement: Some systems use algorithms to enhance image clarity, especially when objects are hard to differentiate due to low contrast.

15. Cost and Intended Use

· Budget Systems: Typically lower-resolution and fewer features, suitable for basic nighttime use.

· High-end Systems: Offer superior resolution, longer detection ranges, better image processing, and more advanced features like thermal fusion or multi-spectral viewing.

Infrared night vision displays have a wide range of applications across different fields due to their ability to enhance vision in low-light and complete darkness. These systems work by using infrared sensors and displays to capture and present images based on infrared radiation (heat), allowing users to "see" in environments that are invisible to the naked eye. Here are some of the key applications:

1. Military and Tactical Use

· Surveillance
Navigation
Search and Rescue
Sniper Operations
Covert Operations

2. Security and Surveillance

Home Security
Perimeter Monitoring
CCTV and Law Enforcement

3. Wildlife Observation and Research

Wildlife Tracking
Hunting

4. Aviation and Aerospace

Pilot Vision Enhancement
Helicopters and Drones

5. Law Enforcement and Border Patrol

Nighttime Surveillance:
Border Patrol

6. Automotive and Driver Assistance Systems

Night Driving Assistance
Advanced Driver Assistance Systems (ADAS)

7. Search and Rescue Operations

Disaster Response

Mountain and Wilderness Rescues

8. Archaeology and Exploration

Archaeological Surveys
Cave Exploration:

9. Industrial Inspections

Electrical Systems Inspection
Oil and Gas
Building and Infrastructure Inspections

10. Military Simulations and Training

Tactical Training
Virtual and Augmented Reality

11. Science and Medical Applications

Thermal Imaging in Medicine:

Biological Research

12. Entertainment and Gaming

Simulation and VR

Theme Parks and Haunted Attractions

Overall, infrared night vision displays have broad applications that span across safety, security, research, exploration, and entertainment. Their ability to provide visibility in total darkness makes them essential tools in environments where regular vision would be inadequate or impossible.

 Infrared Night Vision Display Custom LCD Solutions for Diverse Applications

Brightness from 0-3000 for perfect display effect achievement. 100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.

Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.

Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle. Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure.

Power consumption, we increase the brightness without increasing the power consumption.

Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.
 Infrared Night Vision Display Touch screen,standard type and customization

 Infrared Night Vision Display Driver board/adapter board, standard type and design customization

DEMO board, H-DMl board, other customized board, etc.

 Infrared Night Vision Display Embedded Integrated Solution

UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
