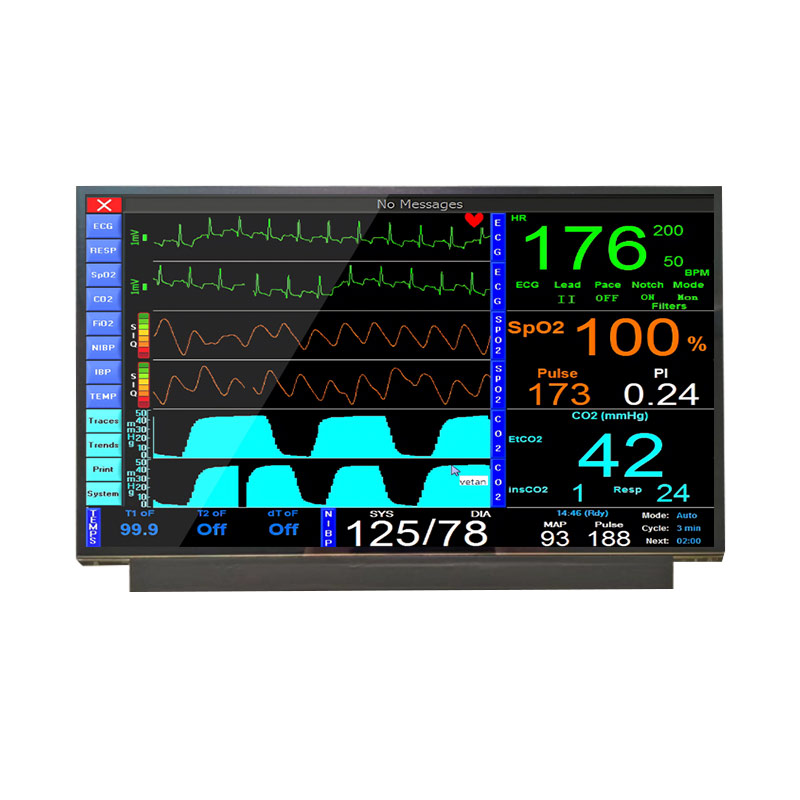

ATNA33TP11 Samsung 13.3 Inch AMOLED Display eDP 3840x2160 OLED Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > Samsung > ATNA33TP11
ATNA33TP11 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 332 PPI. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 297.76(W)×186.34(H)×2.5(D) mm, with surface treament of Glare (Haze 0%), net weight of 154g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). ATNA33TP11 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA33TP11 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/10V (Typ.)(VDD/VBAT). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
ATNA33TP11
Brand：
Samsung
Size：
13.3 inch"
Resolution：
3840x2160
Interface：
eDP (4 Lanes)
Technology：
Transmissive
Brightness：
400cd/m²
Operating Tem：
-20~70°C
Storage Tem：
-40~85°C
